Descriptive Abstract

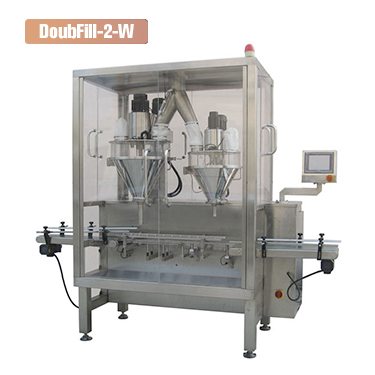

This Machine Is a Complete, Economical Solution To Your Filling Production Line Requirements.Can Measuring And Filling Powder And Granular. It Consists Of The Two Filling Head, An Independent Motorized Chain Conveyor Mounted On a Sturdy, Stable Frame Base, And All Necessary Accessories To Reliably Move And Position Containers For Filling, Dispense The Required Amount Of Product, Then Quickly Move The Filled Containers Away To Other Equipment In Your Line (e.g., Cappers, Labelers, Etc.).It Fits More To The Fluidic Or Low-Fluidity Materials, Like Milk Powder, Albumen Powder, Pharmaceuticals, Condiment, Solid Drink, White Sugar, Dextrose, Coffee, Agriculture Pesticide, Granular Additive, And So On.
Main Features
1.Stainless Steel Structure; The Quick Disconnecting Hopper Could Be Washed Easily Without Tools. 2.Servo Motor Drive Screw.
3.PLC, Touch Screen And Weighing Module Control.
3.PLC, Touch Screen And Weighing Module Control.
4.To Save All Product’s Parameter Formula For Later Use, Save 10
5.Replacing The Auger Parts, It Is Suitable For Material From Super Thin Powder To Granule.
6.Include Handwheel Of Adjustable Height.
Machine Parameters
Machine Details
Descriptive Abstract
This Series Machine Is a New-Designed That We Make It On Placing The Old Turnplate Feeding On One Side. Dual Auger Filling Within One Line Main-Assist Fillers And The Originated Feeding System Can Keep The High-Precision And Take Off The Tiring Cleaning Of The Turntable. It Can Do The Accurate Weighing & Filling Work, And Also Could Combined With Other Machines To Buildup a Whole Can-Packing Production Line. This Machine Could Be Used In Filling Milk Powder, Albumen Powder, Condiment, Dextrose, Rice Flour, Cocoa Powder, Solid Drink, And So On.
Main Features
1.One Line Dual Fillers, Main & Assist Filling To Keep Work In High-Precision.
2.Can-Up And Horizontal Transmitting Is Controlled By Servo And Pneumatic System, Be More Accurate, More Speed.
3.Servo Motor And Servo Driver Control The Screw, Keep Stable And Accurate
4.Stainless Steel Structure, Split Hopper With Polishing Inner-Out Make It To Cleaned Easily.
5.PLC & Touch Screen Make It Be Easy Of Operation.
6.Fast-Respond Weighing System Make The Strongpoint To Real
7.The Handwheel Make The Exchange Of Different Filings To Be Easily.
8.Dust-Collecting Cover Meet The Pipeline And Protect Environment To Pollution.
9.Horizontal Straight Design Make The Machine In Little Area
10.Settled Screw Setup Make No Metal Pollution In Producing
11.With Whole System Central Control System.
Process:
Can-Into → Can-Up → Vibration → Filling → Vibration → Vibration → Weighing & Tracing → Reinforce → Weight Checking → Can-Out
Machine Parameters
Machine Parameters
Machine Details
This Type Can Do Measuring And Filling Work. Due To The Special Professional Design, It Is Suitable For The Fluidic Or Low-Fluidity Materials, Like Milk Powder, Albumen Powder, Rice Powder, Coffee Powder, Solid Drink, Condiment, White Sugar, Dextrose , Food Additive, Fodder, Pharmaceuticals, Agriculture Pesticide, And So On.
Machine Parameters
Machine Parameters
Features
1. The Split Hopper Could Be Washed Easily Without Tools.
2. Servo Motor Drive Screw.
3.Stainless Steel Structure,Contact Parts Ss304
4.Include Handwheel Of Adjustable Height.
5.Replacing The Auger Parts, It Is Suitable For Material From Super Thin Powder To Granule.
Air Holes
Observation Glass
Feeding And Stirring
Feeding Port
Feeding Motor
