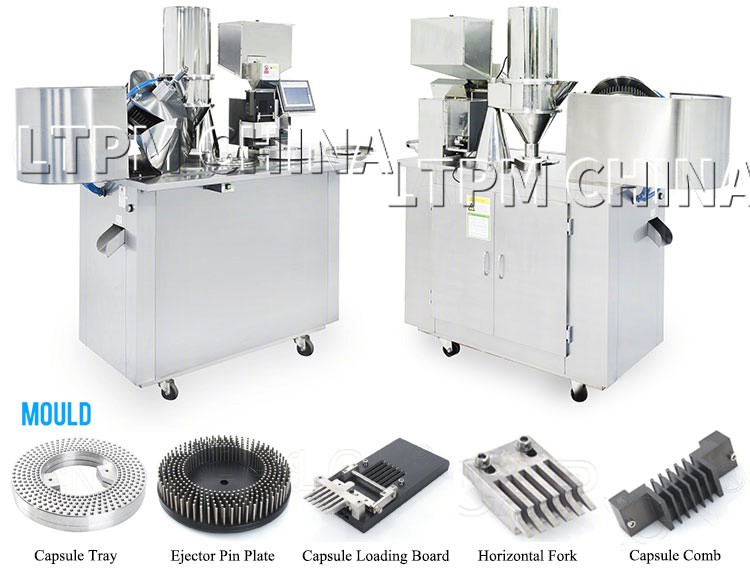

JTJ-V Capsule Filling Machine General Description
JTJ-V (with an auto rotary table) is a semi-automatic capsule filling machine with variable speed control that can fill up to 25000 capsules per hour. It is suitable for filling hard gelatin capsules in sizes 00#, 0#, 1#, 2#, 3# and 4#.
The new version of the capsule filling machine with a touch screen is easy to be operated and prolongs the service life of the machine. The capsule loading system is the same as the fully automatic capsule filling machine, which improves the precision and reduces friction.The pneumatic horizontal locking system can avoid powder leakage, so improve the product quality and reduce manpower.

The main benefits that you will experience by using a semi-automatic filling machine include: 1. You can use it to fill different types of fillers including powders, pellets, or granules. 2.It provides automation up to a certain degree thus increasing the speed of production. 3.You can use it for a considerably larger scale of production in comparison to the manual capsule filling machine. 4. The initial cost of purchasing it is lower in comparison to a fully automatic capsule filling machine. 5.Using this machine eliminates almost all of the personnel you would employ when using the manual filling machine. 6.The filling accuracy is higher than that of the manual filling machine. 7.The machine adheres to the right manufacturing quality standards hence safe for use. 8.The operations of the machine do not emit large sound hence a peaceful working environment.


|
JTJ-V Semi-Automatic Capsule Filling Machine
|
|
|
Model
|
JTJ-V (with an auto rotary table)
|
|
Output
|
1 to 25000 capsules per hour
|
|
Capsule Sizes
|
00#,0#,1#,2#,3#,4#
|
|
Filling Materials
|
Non-viscous powder and tiny granules
|
|
Total Power
|
2.12 KW
|
|
Compressed Air
|
0.03 m³/min, 0.7 MPa
|
|
Vacuum Pump
|
40m³/h
|
|
Machine Dimension
|
1130mm x 700mm x 1600mm (L*W*H)
|
|
Weight
|
Net weight: 400 kg Gross weight: 500 kg
|
|
Packing Size
|
1650mm x 720 x 1700mm
|
