Working Flow

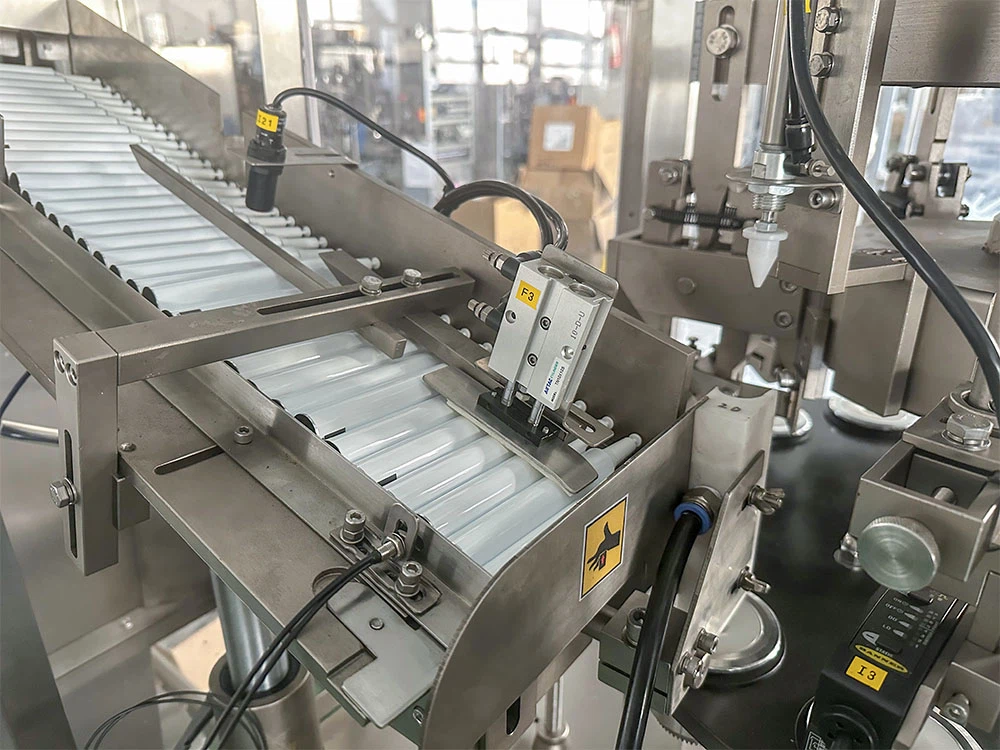

1. Automatically feeding the tubes
2. Automatic mark positioning (photoelectrical sensor)
3. Automatic dosing filling
4. Tail inner heating
5. Tail sealing and pressing the batch, dates
6. Tail trimming
7. Automatic ejection
Main technical parameters:
Power | 220V 50HZ Single phase |
Rate | 1.2KW |
Filling volume | 5--250ml |
Tube diameter | Φ13~40mm,Φ40-50mm |
Producing speed | 30-60 pcs/min |
Filling accuracy | ±1% |
Dimension | 1200*850*1500mm |
Weight | 320kg |
Working air pressure | >0.4Mpa |
Characteristics
1.Pistol plunger filling system processed by digital controlled lathe to guarantee a high filling precision of 1%. And the volume is adjustable.
2. The filling speed can be adjusted freely a VFD
3. Production counter could be displayed on the control cabinet
4.Inner heating and out heating technology, a stable and good looking sealing is got.
