Product Description:
This equipment is an electromechanical high-tech product developed on the basis of years of automated product inspection developed by our company. It can suppress various conventional wafers and other special-shaped tablets (including double-sided printing): This equipment is pharmaceutical, chemical, The best choice for food, plastic, electronics and other production enterprises.
Features:
1:Double-press type, continuously automatic rotary tablet press
2: The machine is compatible with the GMP requirement.
304 Stainless steel or 316 stainless steel
3: Large power and pressure,Running smoothly
4: Overload protection unit
5: Frequency conversion device
6: Touch screen, easy to realize man-machine dialogue
7: Centralized Lubrication System
Technical Parameters:
| Model | ZP-45 |
| Dies(pair) | 45 |
| Max. force(KN) | 100 |
| Max. tablet pressing diameter (mm) | 13 |
| Max. filling depth(mm) | 17 |
| Max. tablet thickness (mm) | 8 |
| Speed of turret (r/min) | 5~36 |
| Max. capacity (pcs/hour) | 200 000 |
| Dimension(L×W×H) | 1150×960×1850 |
| Motor (KW) | 5.5 |
| Weight(KG) | 1800 |

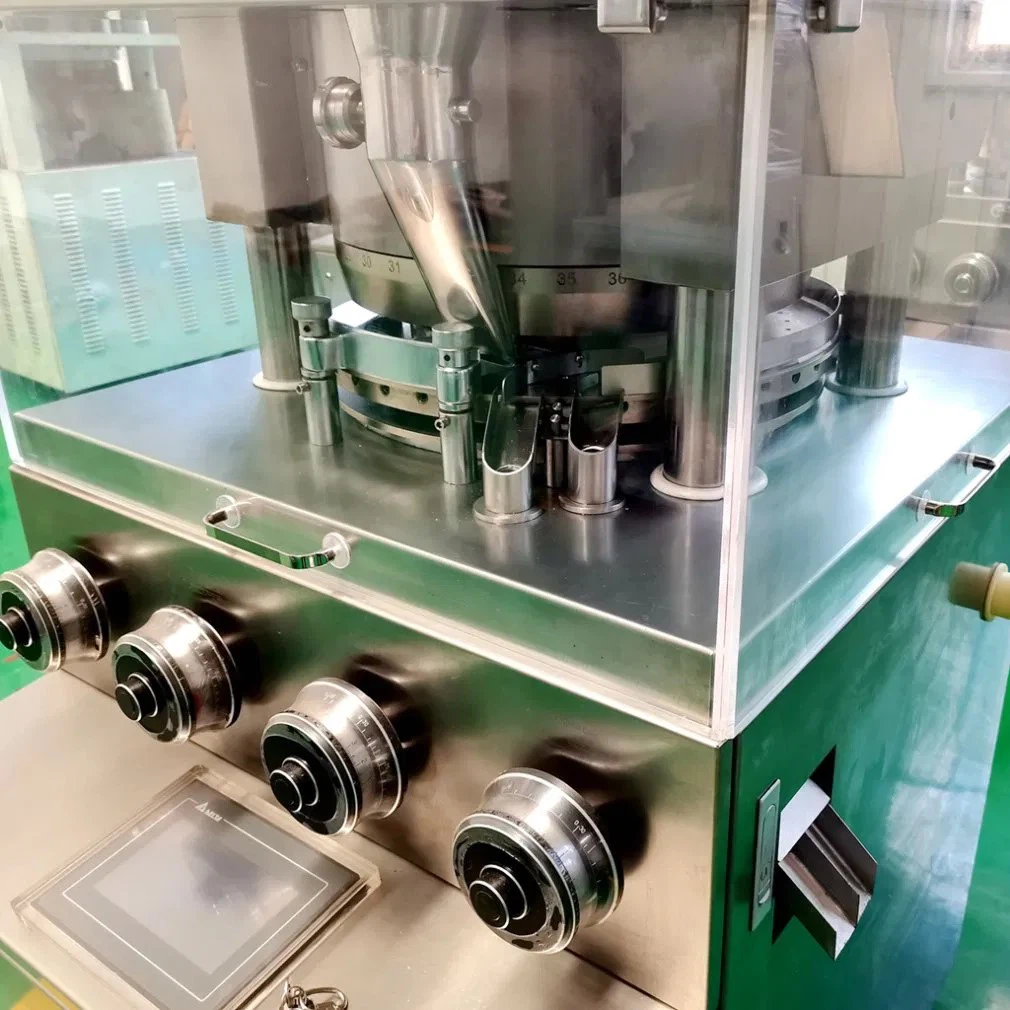

Machine Detail:
