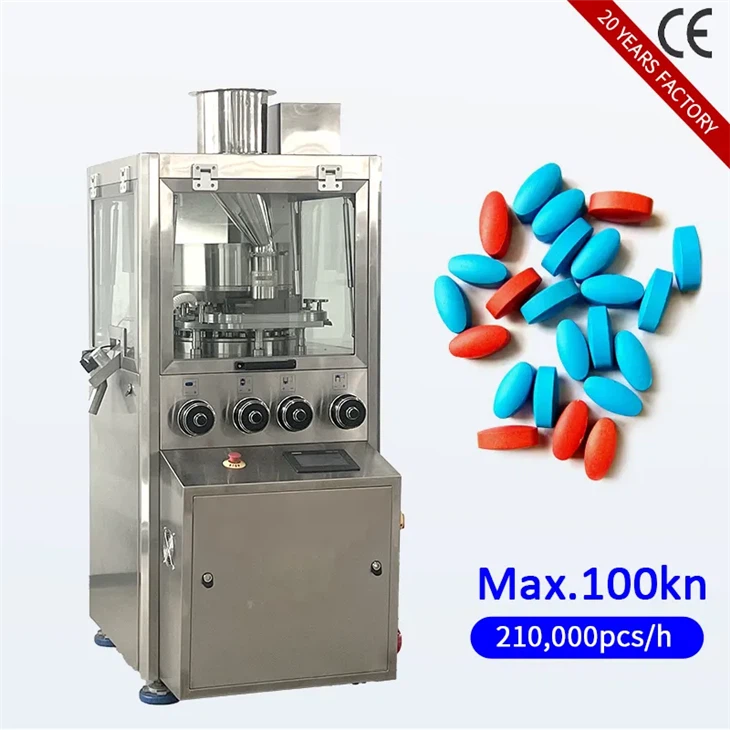

Product Description:
High speed tablet press is an automated equipment used in industries such as pharmaceuticals, food, and chemicals. It is mainly used to press powder or granular raw materials into tablets (such as pills, health products, candies, etc.). Its core characteristics are high production efficiency, stable accuracy, and suitability for large-scale industrial production.
Features:
1. Adopt PLC control, with automatic protection function;
2. Touch screen operation, can match production batch print function;
3. Equipped with forced charging function, it is suitable for different materials liquidity;
4. Have automatic lubrication function, reduce the production of noise, improve equipment service life;
5. Have main pressure, preloading twice pressure forming;
6. Powder automatic compensation can be realized (optional);
7. Have the pressure of each punch, according to monitoring tablet weight, with the weight difference in tablets automatically play waste.
Main structure
Pressure roller system: the core pressure component that applies high pressure to the material through upper and lower punches for forming.
Rotary table: a rotating worktable that drives multiple stamping dies to continuously press tablets.
Feeding device: Fill the material evenly into the mold holes to avoid voids or excess.
Control system: PLC or touch screen control, adjust parameters such as pressure, speed, and chip weight.
Dust removal system: reduces dust pollution and complies with GMP (Good Manufacturing Practice) requirements.
Application:
Technical Parameters:
| Punch Station Quantity(Sets) | 16 |
| Punch Form(Ipt) | D |
| Max.Table Pressure (Kn) | 100 |
| Max.Pre-Pressure (Kn) | 16 |
| Max. Table Diameter(mm) | 25 |
| Max. Irregular Diameter (mm) | ≤25 |
| Center Mold Diameter (mm) | 38.1 |
| Punch Diameter (mm) | 25.35 |
| Punch Length (mm) | 133.6 |
| Max.Filling Depth (mm) | 20 |
| Max. Thickness (mm) | 0.5-8 |
| Rotary Speed (r/m) | 22-110 |
| Max.Output (pcs/h) | 100,000 |
| Voltage (V) | 380/220 |
| Motor Power (Kw) | 5.5 |
| Weight (Kg) | 1200 |
| Equipment Size (Mm) | 700×1000×1750 |
Machine Detail:
