Coating pan machine General Description:
It is widely used in the pharmaceutical, nutritional and food industries for coating tablets or pills.
Coating Pan size: Ф1000mm (Ф39")
A built-in heater is provided with the machine.

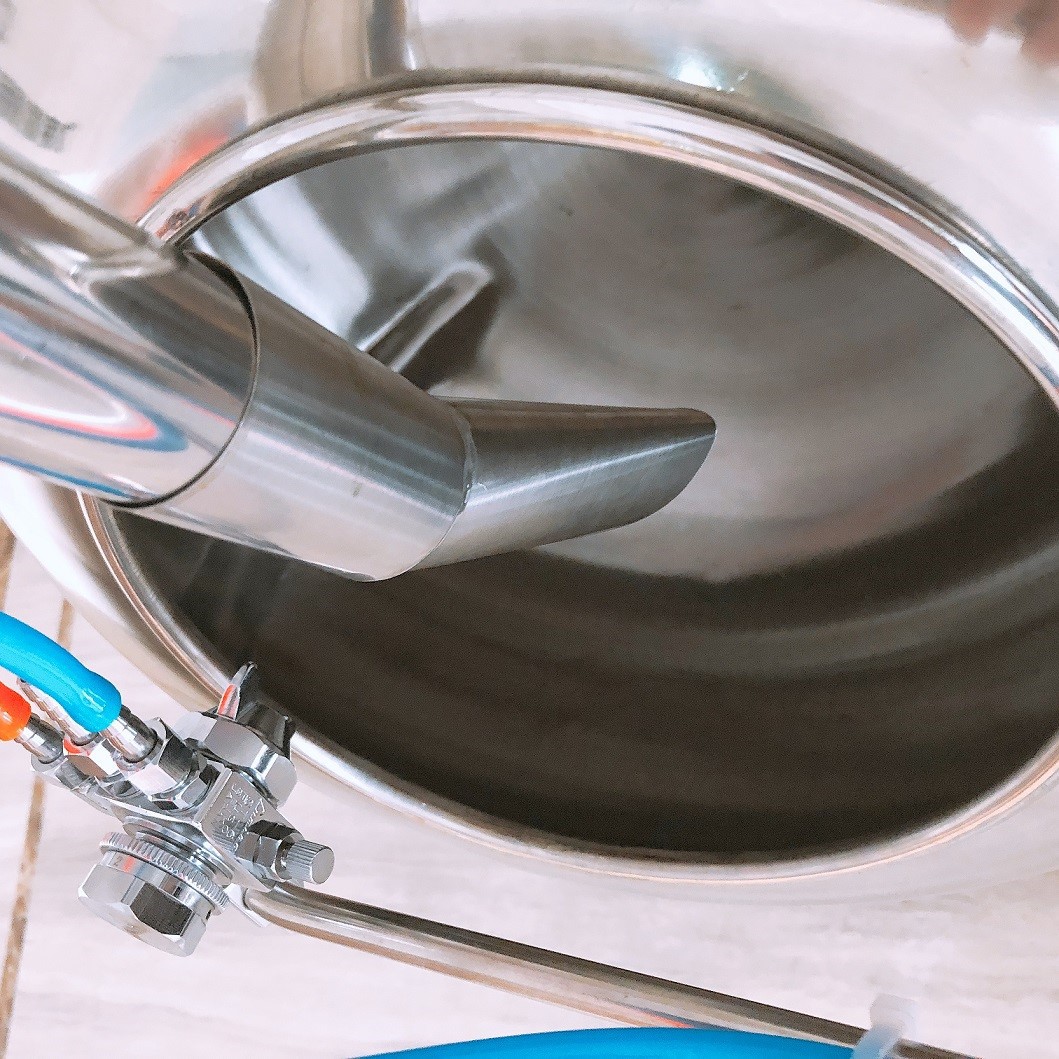

The pipe of the blower stretches into pot for an evenly heating distribution while the coating pan is rotating.
Adjustable coating pan and LED display.
Adjustable blower temperature and LED display.
Option adopted spray gun system for film coating processing.
All stainless steel 316 construction to meet the GMP standard.
It's easy to operate, clean, excellent performance and simple maintenance.
Main Technical Data:
SQY-1000 Sugar Coating Pan
| Main Technical Specifications | BY-1000 Sugar Coating Pan |
Coating Pan size | Ø1000mm (39″) |
Coating Pan Rotate Speed | 0 ~ 30 r.p.m |
Capacity | 110 lbs per batch |
Power | Main Motor: 1.1 kWBlower Motor: 240 W |
Hot Air Temperature | Room Temperature 20 °C to 80 °C, 450m3/h |
Dimension | 1000 x 940 x 1650 mm (39″ x 37″ x 45″) |
Weight | 350 kg (770 lb) |
