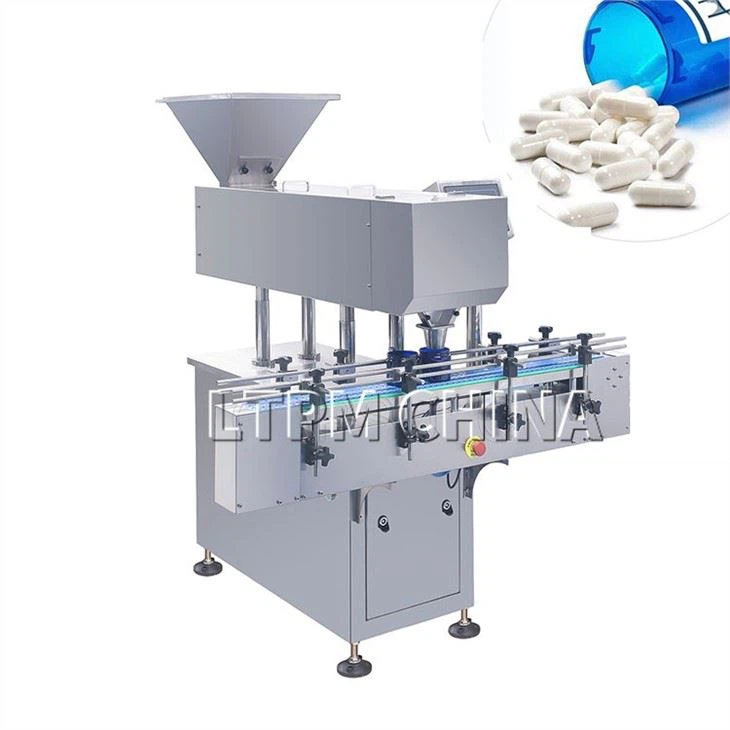

Multi Channel Electronic Automatic Tablet Capsule Counting Machine Line
Multi Channel Electronic Automatic Tablet Capsule Counting Machine Line

Multi Channel Electronic Automatic Tablet Capsule Counting Machine Line

Automatic Capsule & Tablet counting machine Electronic Counting Machine is mainly suitable for medicine, industry, chemical industry, food and other industries. It can be widely used for counting and bottling solid preparations, such as pills, sugar-coated tablets, plain tablets, soft and...
Send Inquiry

Automatic Capsule & Tablet counting machine


Electronic Counting Machine is mainly suitable for medicine, industry, chemical industry, food and other industries. It can be widely used for counting and bottling solid preparations, such as pills, sugar-coated tablets, plain tablets, soft and hard capsules and other shapes of medicine granules. This machine can be used independently, and can also form a linked production line with other supporting equipment such as bottle unscrambler, paper stopper, capping machine, sealing and labeling machine.

product-1-1

Main features:

1.Three-stage vibrators：With 8-channel vibration, materials are distributed more evenly.
2.Reliable operation：It runs stably and smoothly with low noise.
3.High dust resistance：It adopts unique anti-dust photoelectric sensor.
4.Accurate counting：Due to photoelectric sensor detection and imported large PLC counting, bottle-filling error meets the international standard.
5.Optional function：If special components are added, it can possess functions such as rejecting unqualified capsules or tablets and photoelectric detection alarming for lack of bottles or bottles being blocked.
6.Simple operation：With intelligent design, various operating parameters can be set in advance, including at most 15 sets in memory.
7.Easy maintenance：The operator only requires simple training as the disassemble, cleaning and replacement of parts are easy to carry out without the need of tools.
8.Sealed and dustproof：It is equipped with a dust box to reduce dust pollution.
9.The platform height can be adjusted according to the bottle height.
10.The machine is equipped with a power supply voltage stabilizing system, so it can still work normally in areas with unstable power supply.

product-752-585
product-765-283

Model

JF-8

Rate of production

10~30 bottles/min

Single bottling capacity

2-9999 pcs/bottle

Common type

Pills, tablets, soft and hard capsules and other solid tablets

Pharmaceutical specifications

φ3~φ20mm solid granules, 0~5# hard capsules, soft capsules, other solid granules

Bottle diameter

φ20~φ100mm

Bottle height

40~240mm

Power supply

AC220V50/60Hz

Air pressure and consumption

0.6~0.8 MPa, 3.5 L/min

Power

0.8 kW

Overall dimension (L*W*H)

1350mm*1400mm*1650mm (Level 2)
1650mm*1400mm*1650mm (Level 3)

Machine weight

About 250kg/300kg
