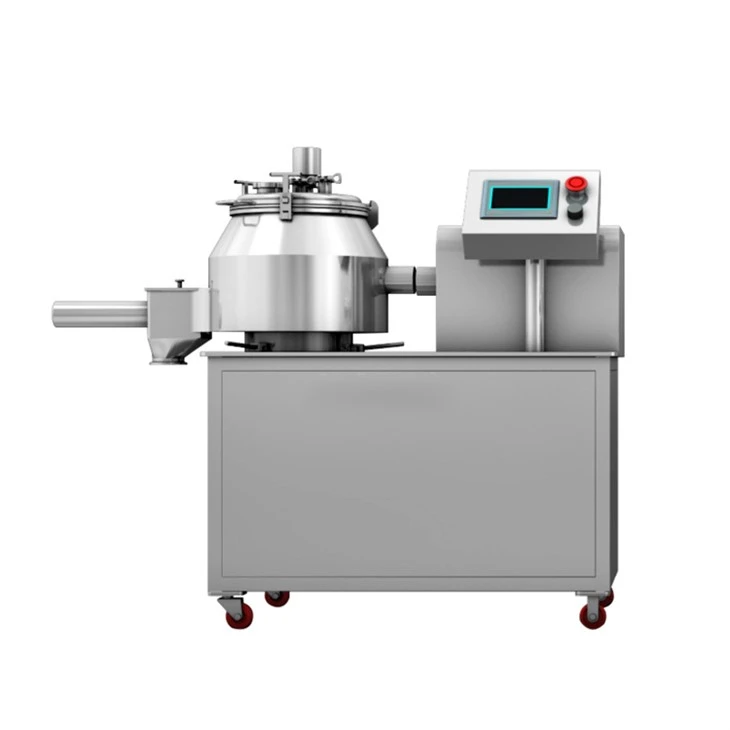

GHL-15series High-speed Mix Granulator
1.The name and type of the equipment
GHL-15 high-speed mix granulator
2. Principle of action
The powder raw material and adhesive in a cylinder are mixed fully at the bottom to turn into a humid soft material. Then it is crushed at a high speed and become uniform granules.
3. Function feature
The machine adopts a practical horizontal cylinder structure.
The driving shaft is equipped with inflatable seal. While washing, the air can be replaced by water.
Fluidized granulating processed is used and the final granules are quite round with high fluidity.
Compared with traditional technique, this type of machine can reduce 25% of adhesive and also shorten the drying time.
For each batch of material, with 2 minutes' dry mixing and 1-4 minutes' granulating, the efficiency is 4-5 times higher than that of traditional technique.
Dry mixing, wet mixing and granulating are finished inside the same sealed container, which is in conformity with the requirements of "GMP" .
4.The main technical characteristics.
| Number | Item | Unit | Model/specification |
1 | Volume of Container | Liter | 15 |
2 | Capacity | Kg/batch | 5 |
3 | Mixing speed | rpm | 0-270 |
4 | Mixing power | kw | 2.2KW |
5 | Cutting speed | r.p,m | 0-2990 |
6 | Cutting power | kw | 1.1 |
7 | Pressure of compressed air | Map | 04-0.6 |
8 | Consumption of compressed air | M3/min | 0.1 |
9 | Oversize | Mm | 1200x600x1100 |
6. Documentation:
2) Also we will submit test certificates for all bought out items like motor.
3) Two copies of operational manual with English will be given at the time of dispatch of machine.
4) All our machines guaranteed for trouble free performance for a period of 12 months from commissioning.
7. Safety features:
The machines can't be started without safe earthing.
10L bowl can produce 3kg/batch
