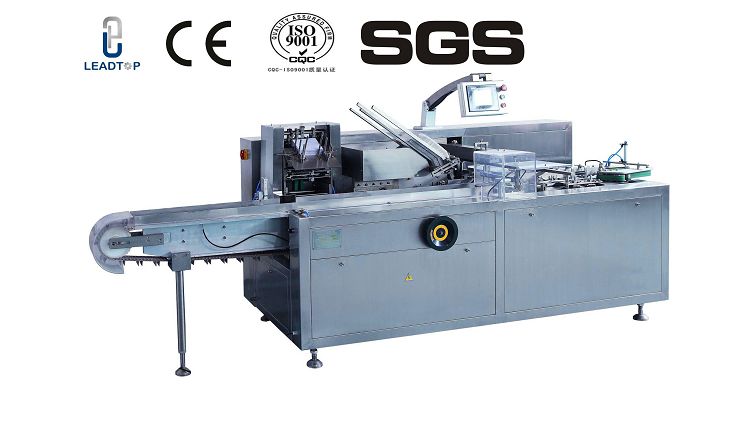

ZH-100 Multifunction automatic horizontal Cartoning Machine
Product Description
Automatic electronic hot melt glue sealing biscuit perfume soap carton box packing machine
The machine is mainly used in the food, medicine, soap and cosmetics packing etc.
It is designed with hot glue sealing or tucker type sealing systems.
Upstream products go into the machine, and then go through the carton suction, open, product feed in, hot gluing, closing, code mechanical printing and output as finished product for case packing.
Chinese/English touch screen is easy to operate and do the parameters setting. PLC is used for accurate control, fast response, and high reliability.
Hot glue temperature is auto controlled for easy adjustments.
It has the functions of no soap no suction box, no box no push soap and so on.
Alarm and stop when the product is blocked, the box is not opened successfully and the soap is not pushed successfully.
Main Technical Data
| Model | ZH-100 |
Weight in kg | 1100 |
Output & Speed
| Steady production speed | 50-100 cartons/min |
Unfold Leaflets
| Grammage | Between 65-80g/m2 |
Size range | (80-210) ×(70-210)mm (L×W) |
Fold range | (1-4 )fold |
Notice: The leaflet can be folded by the machine | |
Carton (Card Board)
| Grammage | Between 250-350g/m2 |
Carton Size mm | (40-125)×(12-85)×(16-70)mm |
Utilities
| Standard power supply | 220V – 50Hz |
Power consumption in KW | 1.5 |
Air consumption | 120-160L/min |
Compressed Air Pressure | 0.5-0.8MPa |
Noise |
|
