Feature:

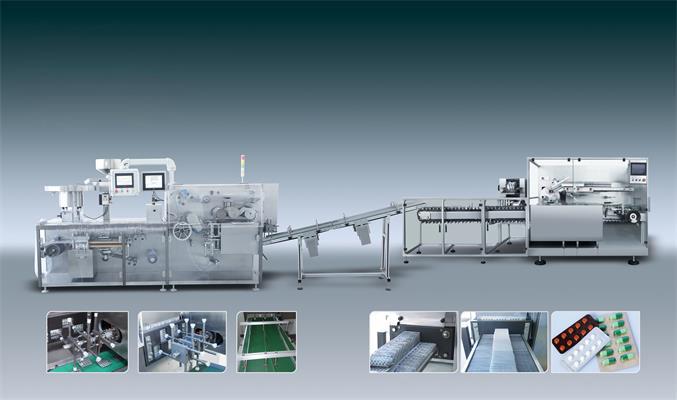

● High-speed roller-plate blister packaging production line: It is a production of aluminum-plastic, aluminum-aluminum (hard aluminum) and other plates, set medicine (capsules, tablets) food, medical equipment, health products, hardware and other materials packaging and loading Integrated production.
● The production line is a mechatronics high-tech product with a wide range of applications. It can complete the work of aluminum-plastic packaging and cartoning machines for pharmaceuticals, realize automated production of pharmaceutical packaging, minimize human error, and effectively prevent drugs during the packaging process. Contamination and quality decline.
●Using the newly designed manipulator with eccentric planetary transmission structure, high suction plate speed and good stability
Main Technical Data:
| DPH-320 high speed blister packing machine | ||
Item | Data | |
Max Speed(Standard Plate 80mm×57mm×3) | 240cut/min | |
Scope | 20-250 mm | |
Max. Forming Area | 240*320mm | |
Max.Depth | 12mm | |
Pre-Heating Power | 2.5KW(×4) | |
Heat Sealing Power | 3.5KW | |
Power and E-Consumption | 20KW 380V 50HZ(Customize) | |
Air Consumption | 0.4m3/min | |
Packing | PVC | (0.25-0.35)X300mm |
PTP | 0.02X300mm | |
Overall Dimension | 4360×1350×1950 | |
Weight | 3500Kg | |
ZH-300 high speed cartoning machine | ||
Item | Data | |
Cartoning size | (75-160)X(35-75)X(16-70)mm | |
Speed | 100-400 cartons/min | |
Air Consumption | ≥0.8m3/min | |
Compressed air pressure | 0.5-0.7Mpa | |
Total power | 31KW | |
