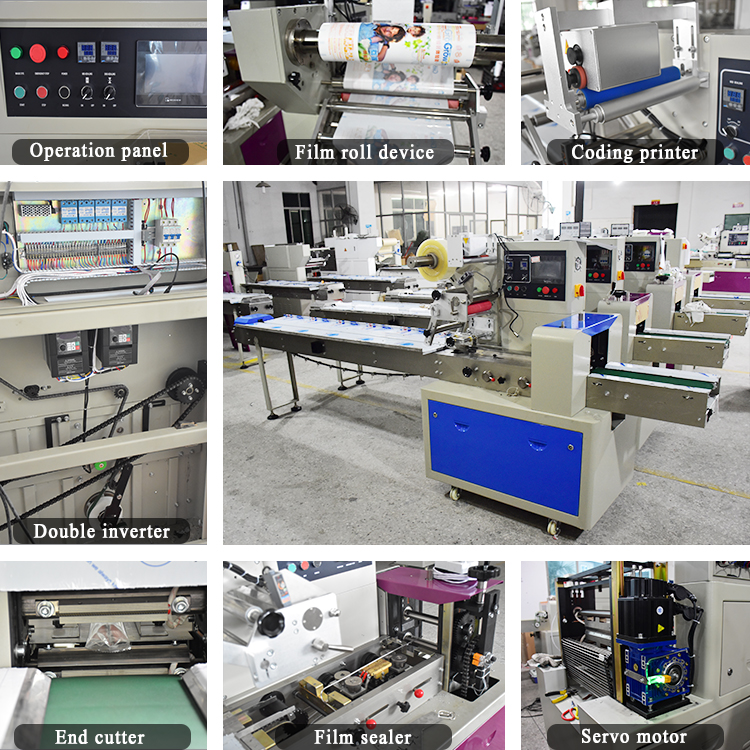

Machine characteristics
1. More than 20 languages can be chose,parameter and function setting convenient with touch screen.
2.PLC intelligent control system,operation more steady without stopping machine.
3.Double frequency converter control, bag length can be set and cut at one step, saving time and film.
3. Self-diagnose function, all the fault will be display on the screen,easy to maintenance.
4. High sensitivity photoelectric eye color tracing, number input of bag size ,cutting position accurate.
5. Temperature independent PLC control, more suitable for packing different materials.
6. Positioned stop function, without sticking knife or wasting film.
7. Simple driving system, reliable working, convenient maintenance.
8. All control is realized through solfware, easy for function adjusting and technical updating.
Technical Parameters
|
Machine model
|
KL-250XZ1
|
KL-250XZ2
|
KL-350XZ1
|
KL-350XZ2
|
KL-450XZ
|
KL-600XZ
|
|
Bag shape
|
Back sealing pillow bag/sachet stick
|
|||||
|
Packing speed
|
1-230
bags/min
|
1-230
bags/min
|
1-230
bags/min
|
1-230
bags/min
|
1-180
bags/min
|
1-150
bags/min
|
|
Roll thickness
|
0.02-0.06mm
|
|||||
|
Max roll width
|
250mm
|
250mm
|
350mm
|
350mm
|
400mm
|
600mm
|
|
Roll diameter
|
320mm
|
320mm
|
320mm
|
320mm
|
320mm
|
320mm
|
|
Bag width
|
30-110mm
|
30-110mm
|
50-165mm
|
50-165mm
|
60-215mm
|
60-290mm
|
|
Bag length
|
65-280mm
|
90-330mm
|
65-280mm
|
90-330mm
|
130-450mm
|
130-450mm
|
|
Voltage
|
220V
|
|||||
|
Power
|
2.4KW
|
2.4KW
|
2.6KW
|
2.6KW
|
3KW
|
3KW
|
|
Additional configuration
|
Coding printer gas-filled device punch device etc
|
|||||
Suitable for single/multiple variety material in 1 bag,snack,food,vegetables,fruits,commodity,plastic parts,plastic toy,metal parts,tissue,disposable tableware,fork,spoon,toy automatic packaging.
